House

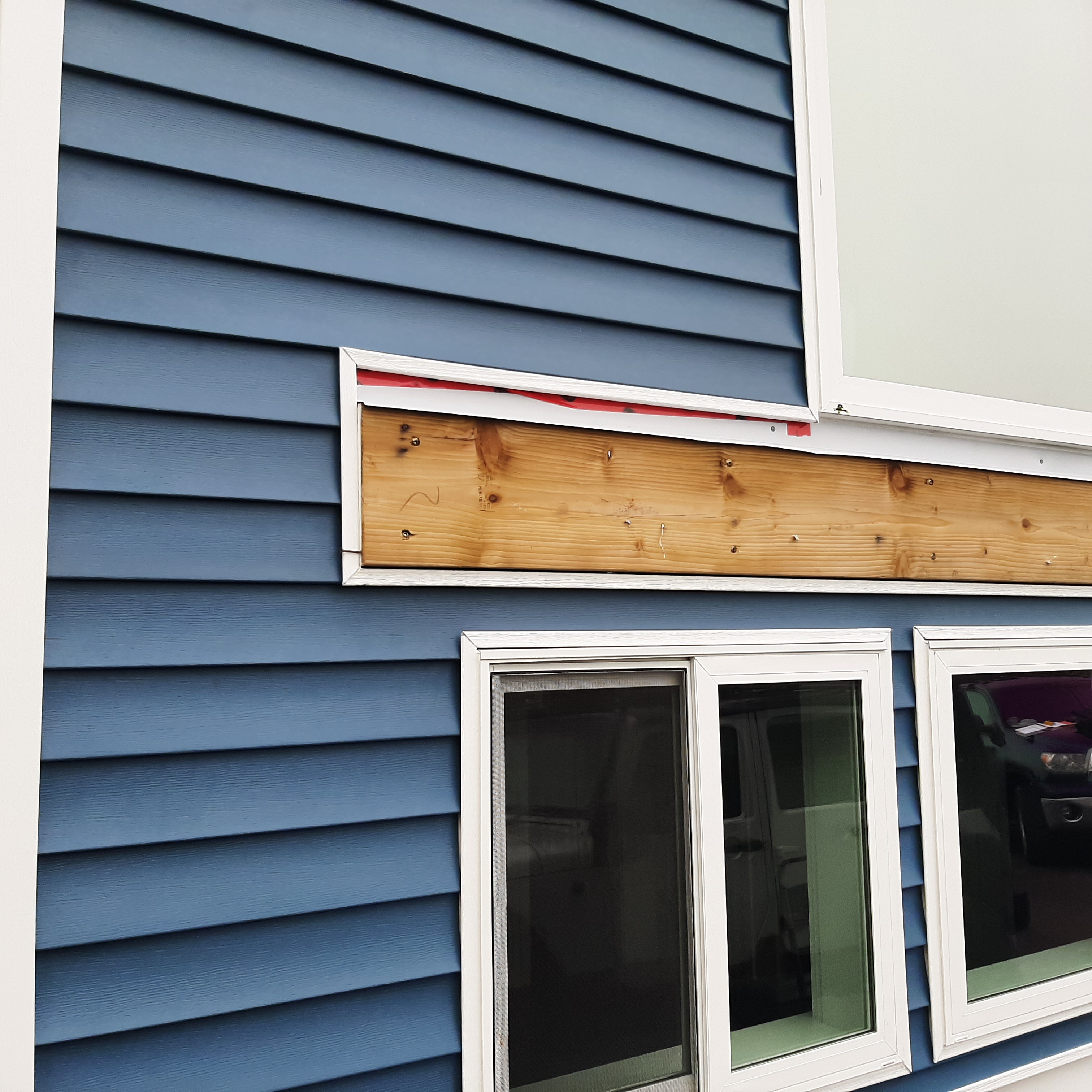

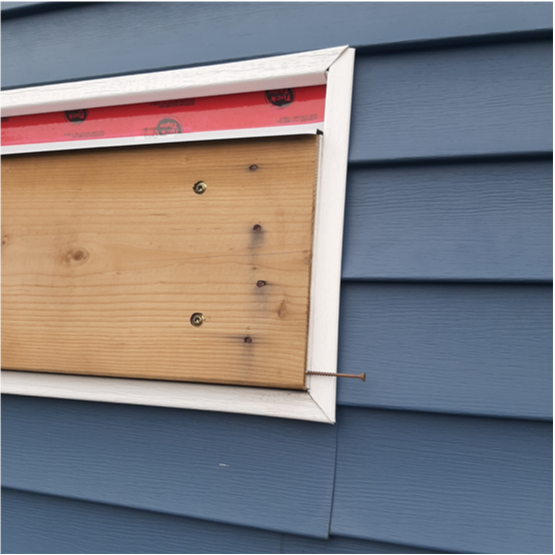

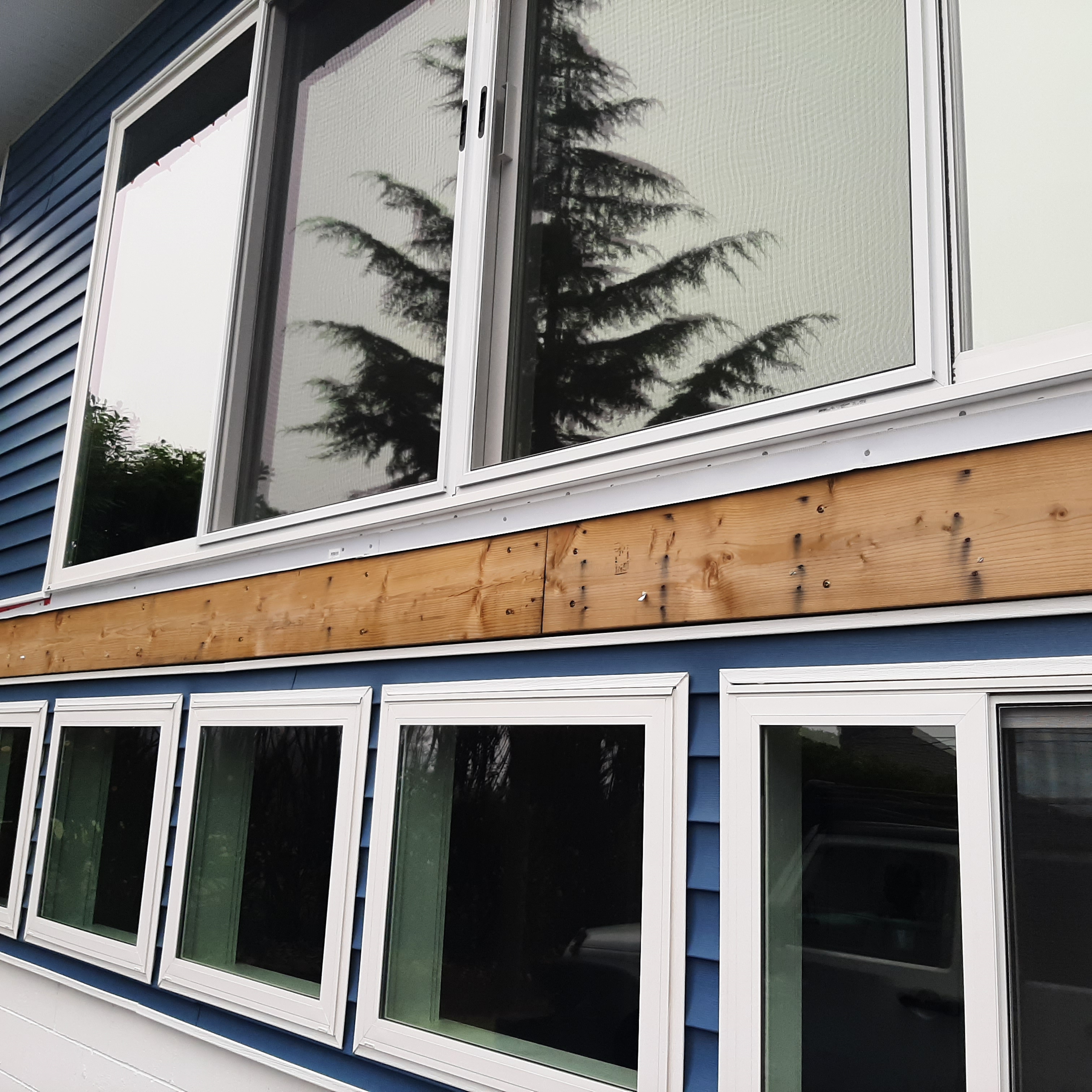

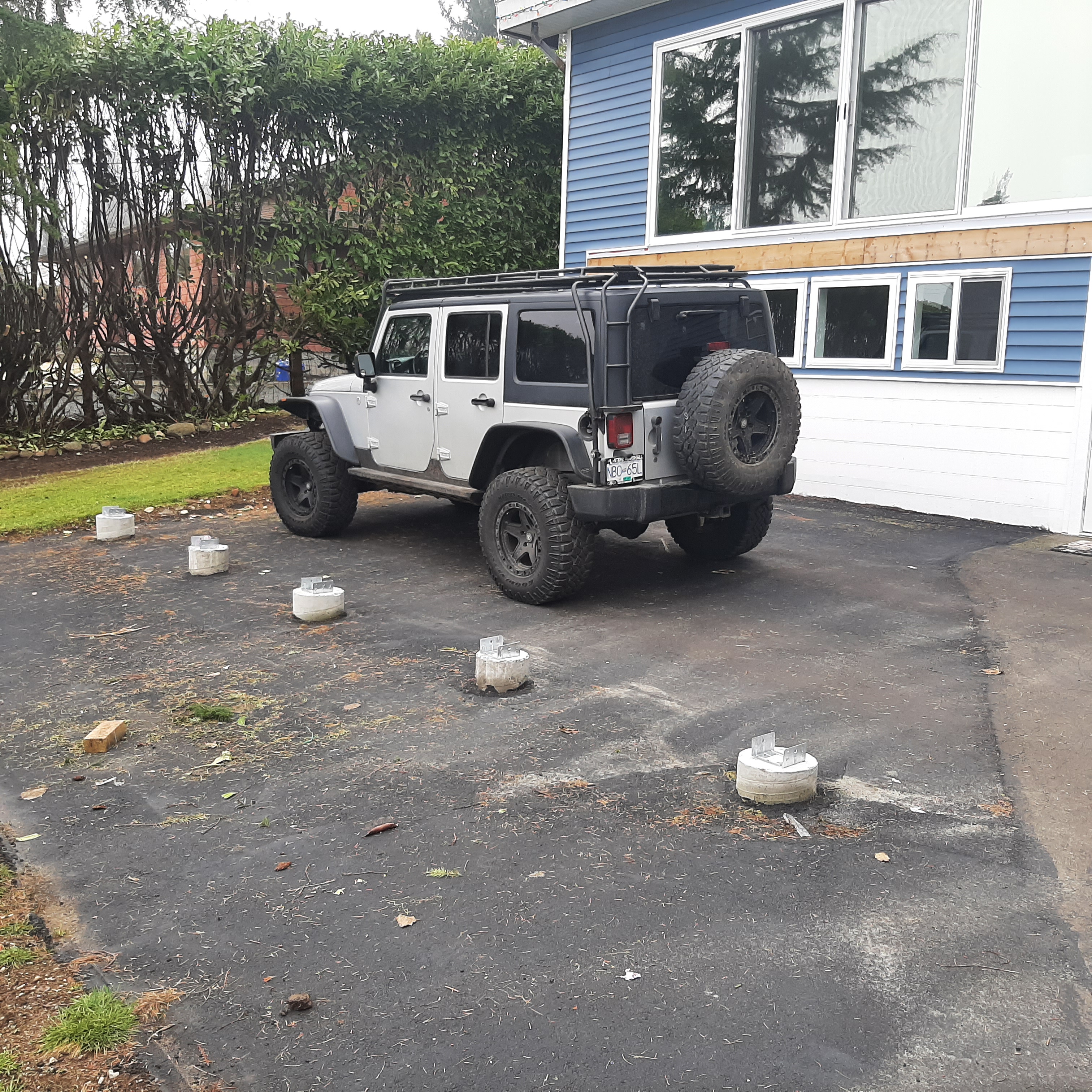

Existing 24' Ledger 2 x10" fir
Bottom of Ledger to grade 7' 1"
top of ledger to bottom of slider sill 3 1/2"
Bottom of Ledger to grade 7' 1"
top of ledger to bottom of slider sill 3 1/2"
Slider to deck
18' Ledger to center saddles
5' 11"
c - c
c - c
5' 3"
c - c
c - c
5' 11"
c - c
c - c
5' 6"
c - c
c - c
Would like to just do
2 - 12' beams with
butt joint in middle.
2 - 12' beams with
butt joint in middle.
Client: Jonathan Lecours - 4240 Discovery Drive, Campbell River, B.C.
Main contractor: 1332997 BC Ltd DBA: CR Decks and railings
Main contractor: 1332997 BC Ltd DBA: CR Decks and railings
Proposed new deck 24' wide x 19' (maybe 20') projection
1' over hang past beam min, if we can go to
2' and make projection 20', ply fits nice, no waste. Going to be such huge joists to span this hopefully we can do the 2' OH
2' and make projection 20', ply fits nice, no waste. Going to be such huge joists to span this hopefully we can do the 2' OH
Deck slope to be
1/4" per foot for Duradek
slope requirements.
1/4" per foot for Duradek
slope requirements.
Landing for
stairs to ground
4' x 4'
stairs to ground
4' x 4'

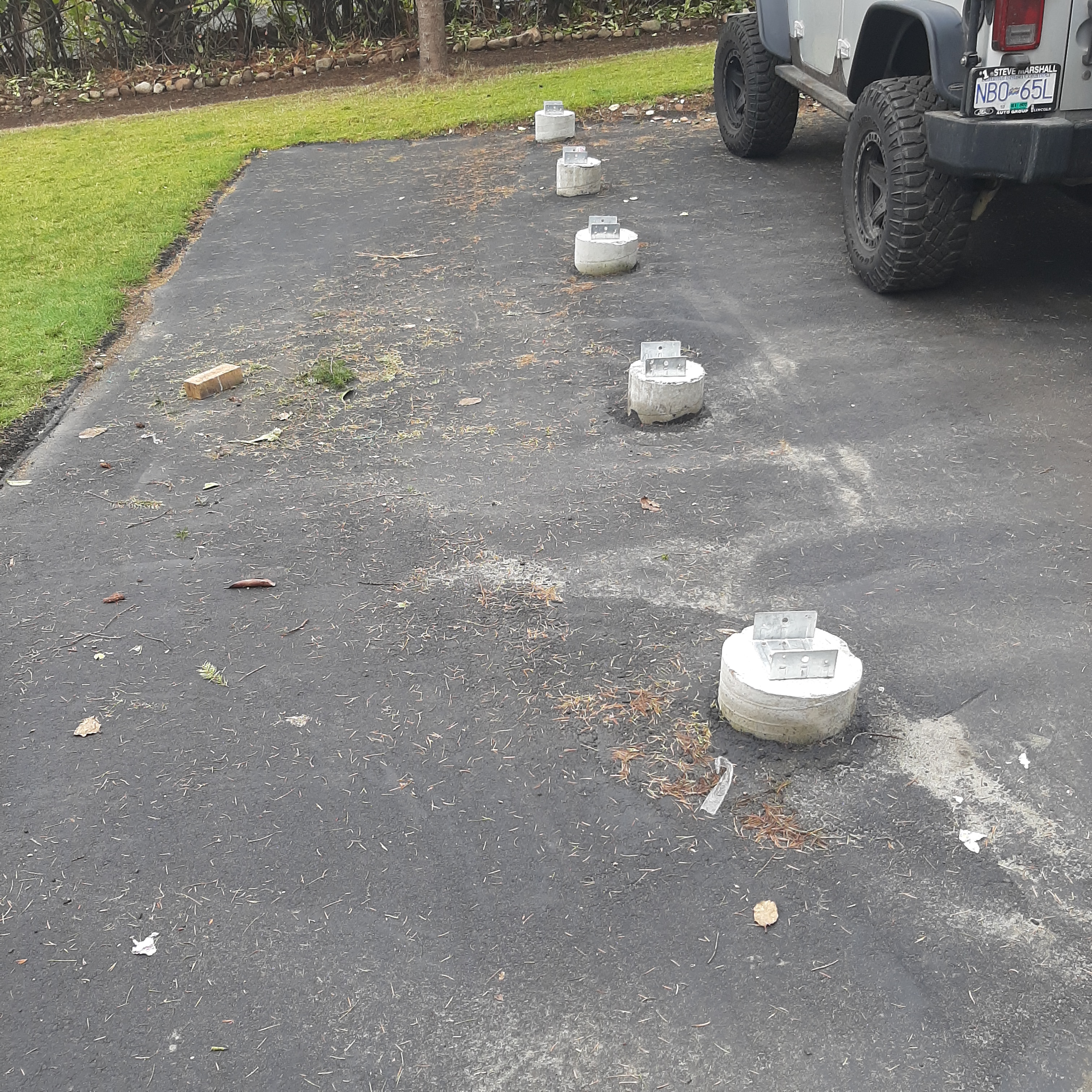

Can we use Post blocks for 4x4's to support beam, install blue crush compacted and 16"x16" patio stones for post blocks to sit on.
Also can we treat main deck rim joist as ledger for stair landing. Provide extra blocking between field joists at this location.
Also can we treat main deck rim joist as ledger for stair landing. Provide extra blocking between field joists at this location.
8" min gap for stair return so railings can pass one another as they will be side mount.
Stairs to be Composite treads (trex)
4- 2x12 PT stringers on approx 13 1/2" c.
2x12 combface buffer board on side of stringers.
Stairs to be Composite treads (trex)
4- 2x12 PT stringers on approx 13 1/2" c.
2x12 combface buffer board on side of stringers.
South
East
North
CRDR
Cement landing
pad for stairs
pad for stairs
Allow 1' from wall to allow for vinyl install and side mount railings
