42 3/4" for top rail
44" for bottom rail
44" for bottom rail
WW
Top rail runs into siding, bottom rail runs into foundation, hence the different measurements for top and bottom rail.
142 1/2"
8"
Center 42" picket railing on top of forms.
This is first step going down.
First Tread surface, 12 1/2" below top of cement form

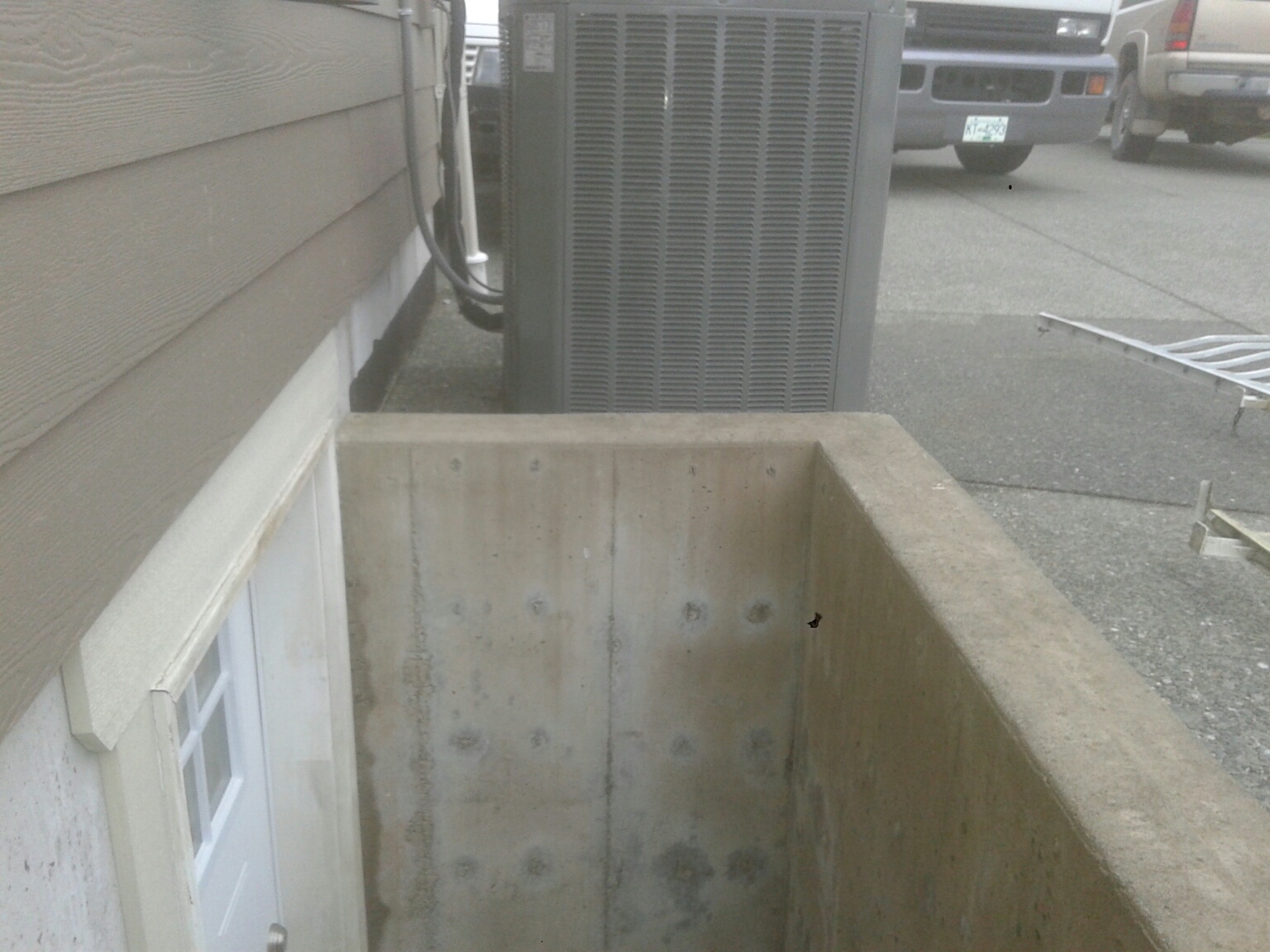

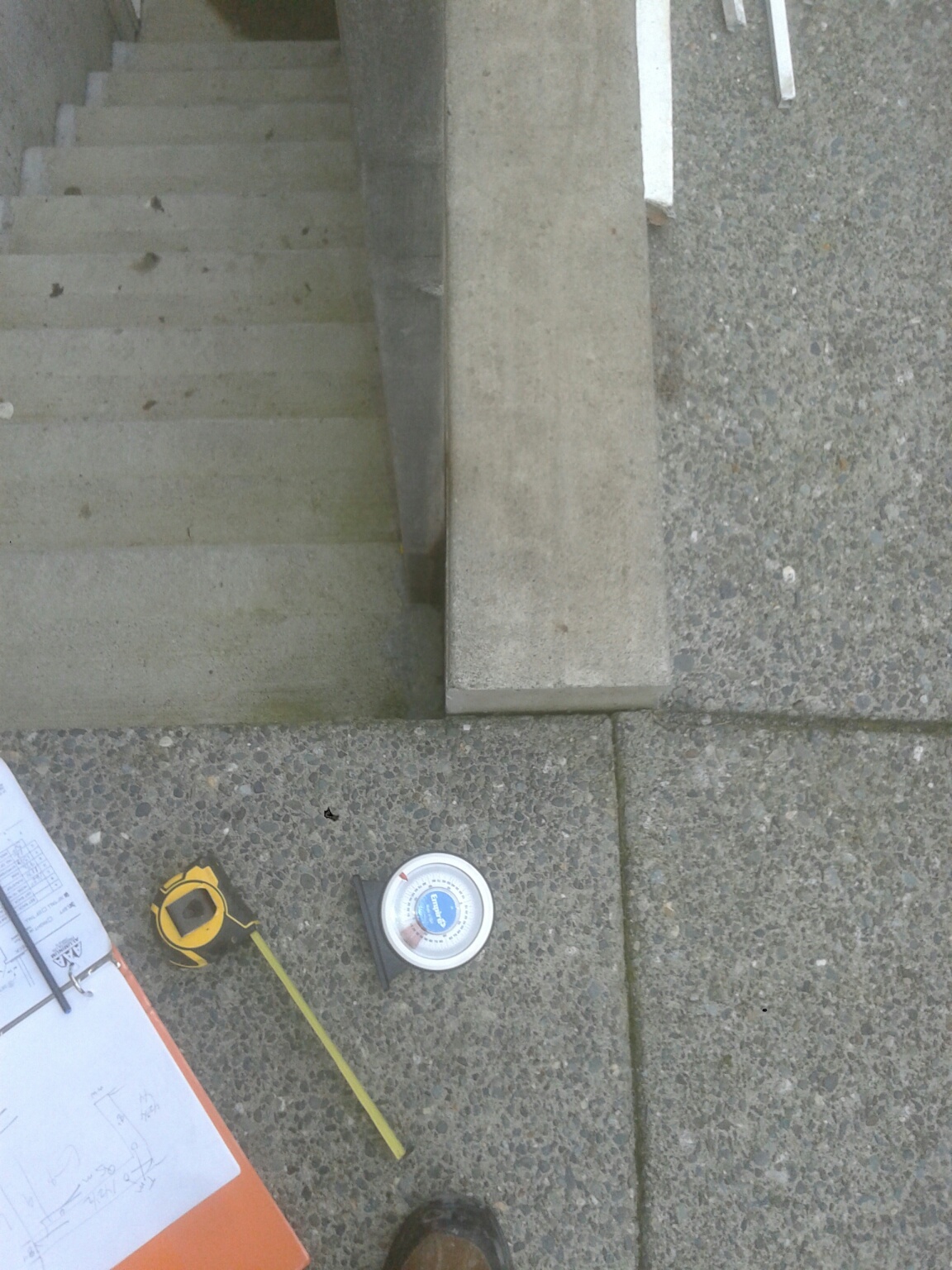

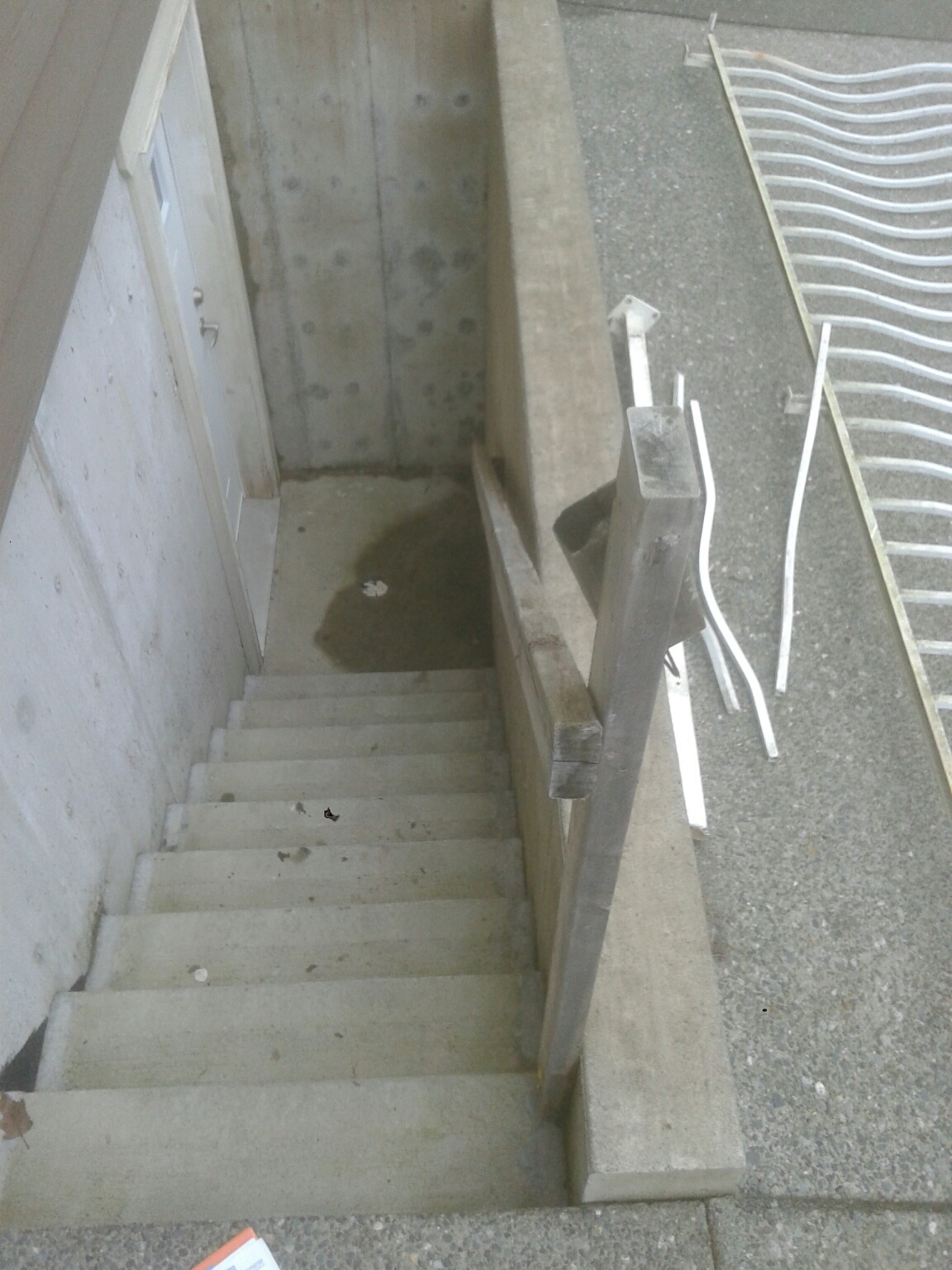

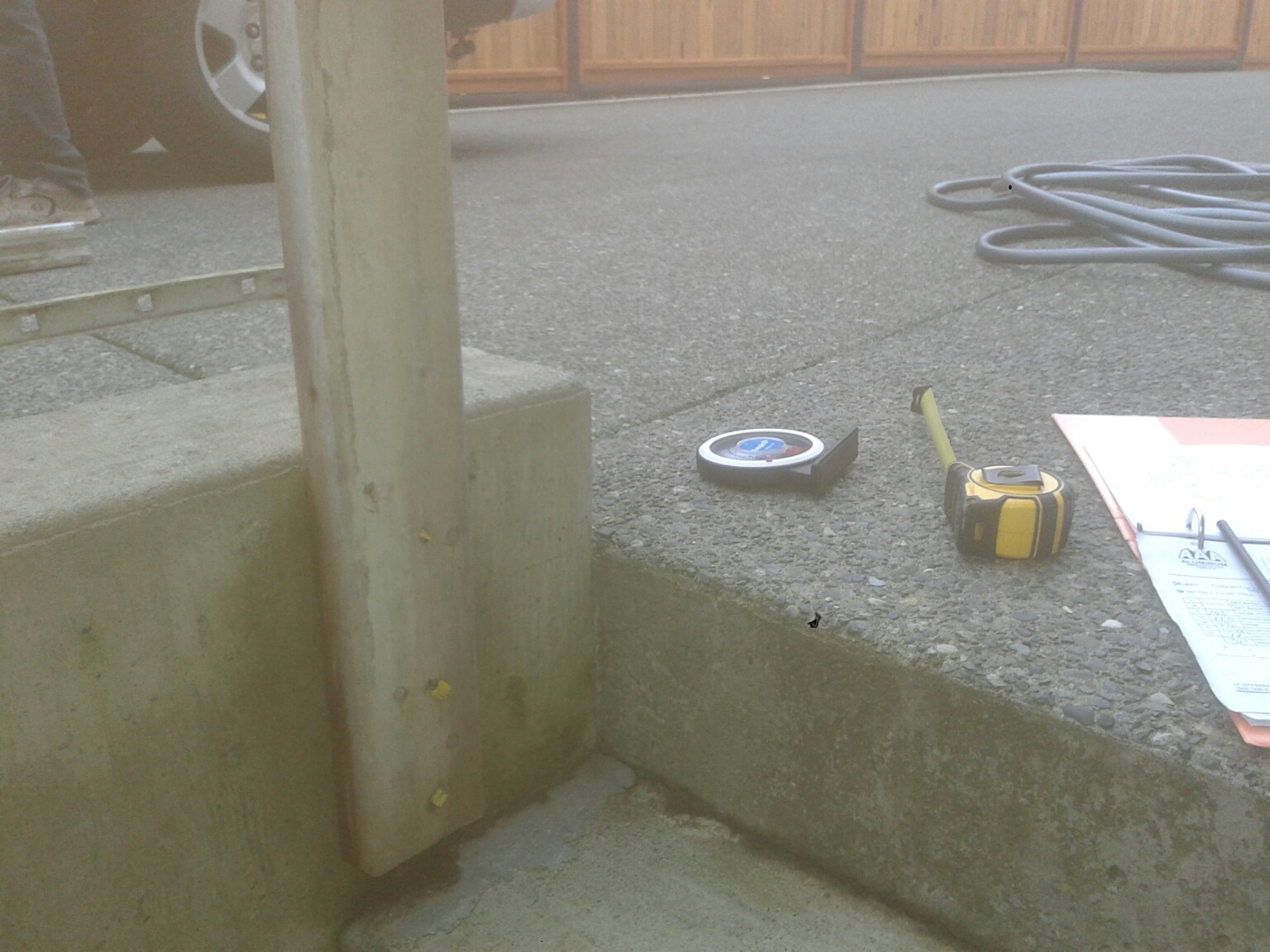

see images
First Tread surface, 12 1/2" below top of cement form
see images
Picket railing
Tubular hand rail to mount to cement wall.

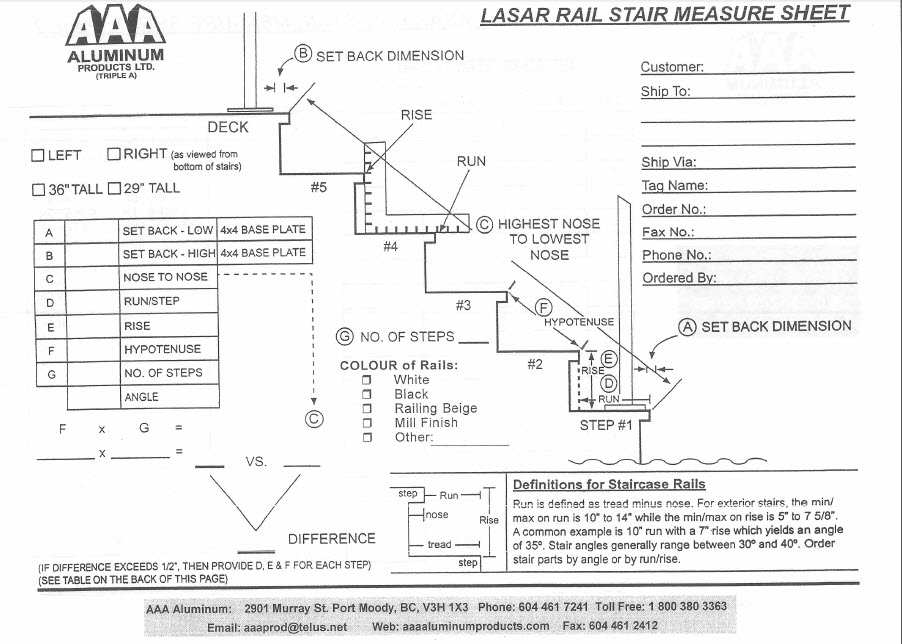

Not sure if you need stair measure sheet for just a tubular hand rail mounted to wall, but I took the measurements anyways.
Burt Campbell
X
X
109"
12 1/4"
9"
7"
9 1/2"
40
8" wide
109"
109"
109"
12 1/2" from top of form to top of first tread.
