90 1/4"
picket

249 1/8"
glass

56 3/4"
glass

529 1/4"glass

81 3/8"
glass

92 1/8"
picket

84"
picket

Project name: Mary and Bob Turner

Fascia to fascia measurements for side mount railings.
Flashing drops 2 1/2", remaining fascia 8" below flashing.
Railings color - Black

Main deck stairs A - 48" wide

Gate here to be approx 48" wide, what ever works best for side mount on deck and top mount on stairs

Stringers are 2" from edge of treads and are 1 1/2" wide -steel.
Would like top mount posts (on stairs only) to straddle them so I don't have to drill through stringers (if possible). The top of the stringers run up the fascia, this is how they mount. See detail to left..

Fascia

Stringer hanger

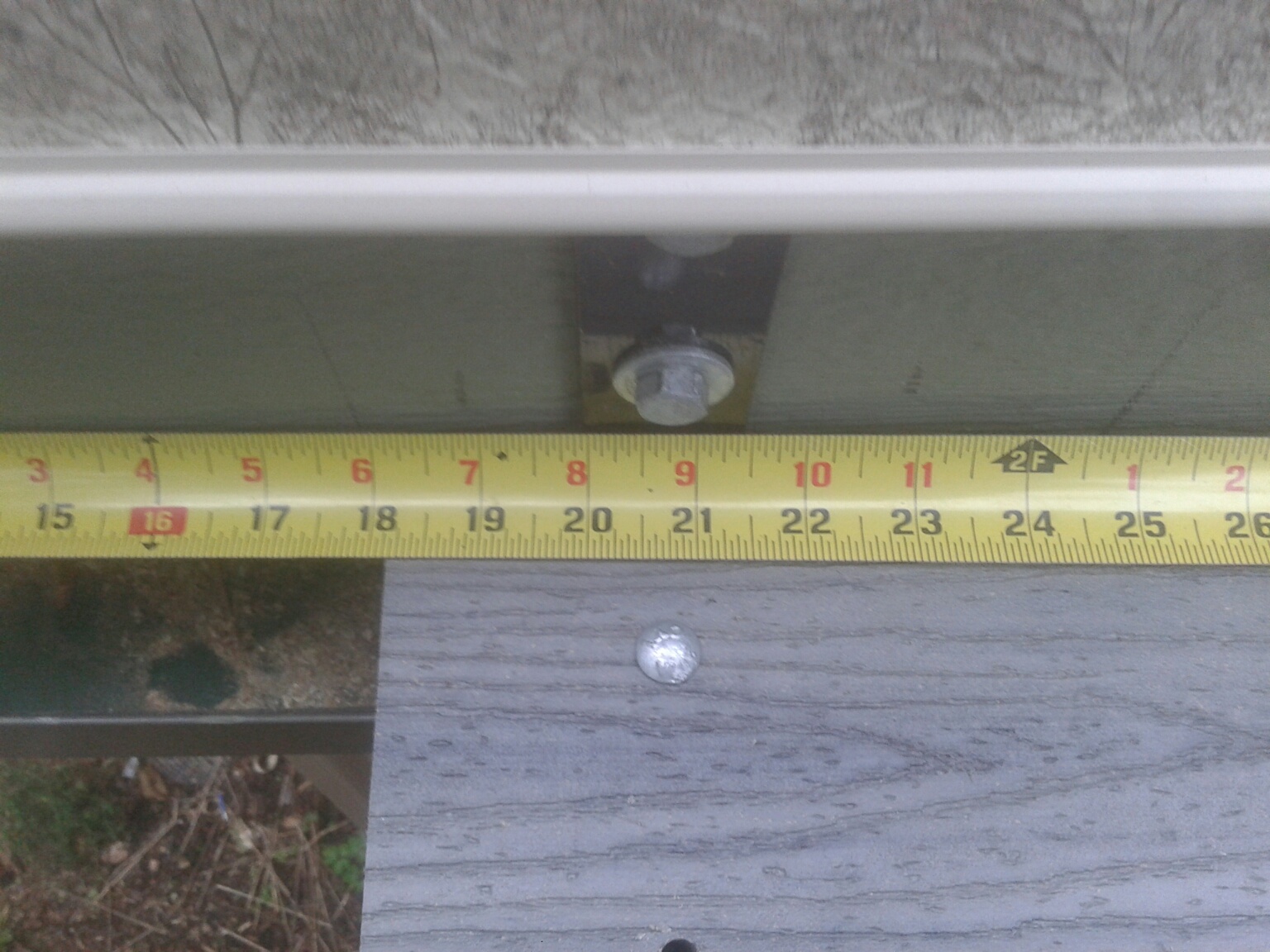

Stair treads start at 18" from deck/fascia edge

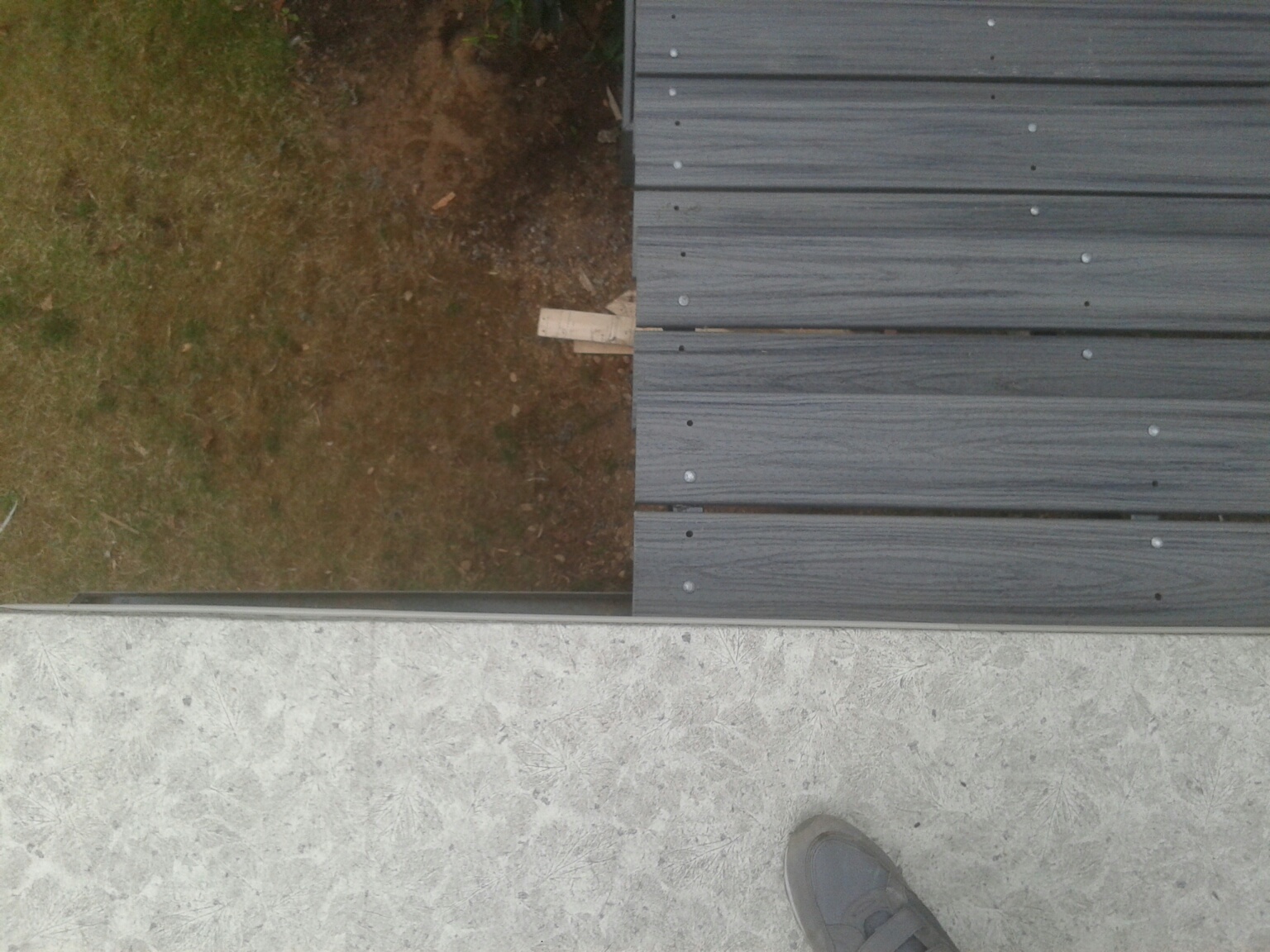

Hi Dan, so Angles.. A pulled them from the fascia like in images.

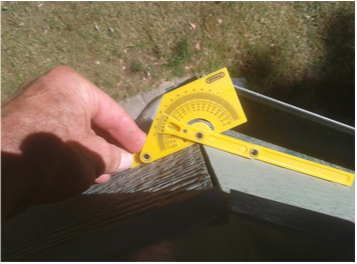

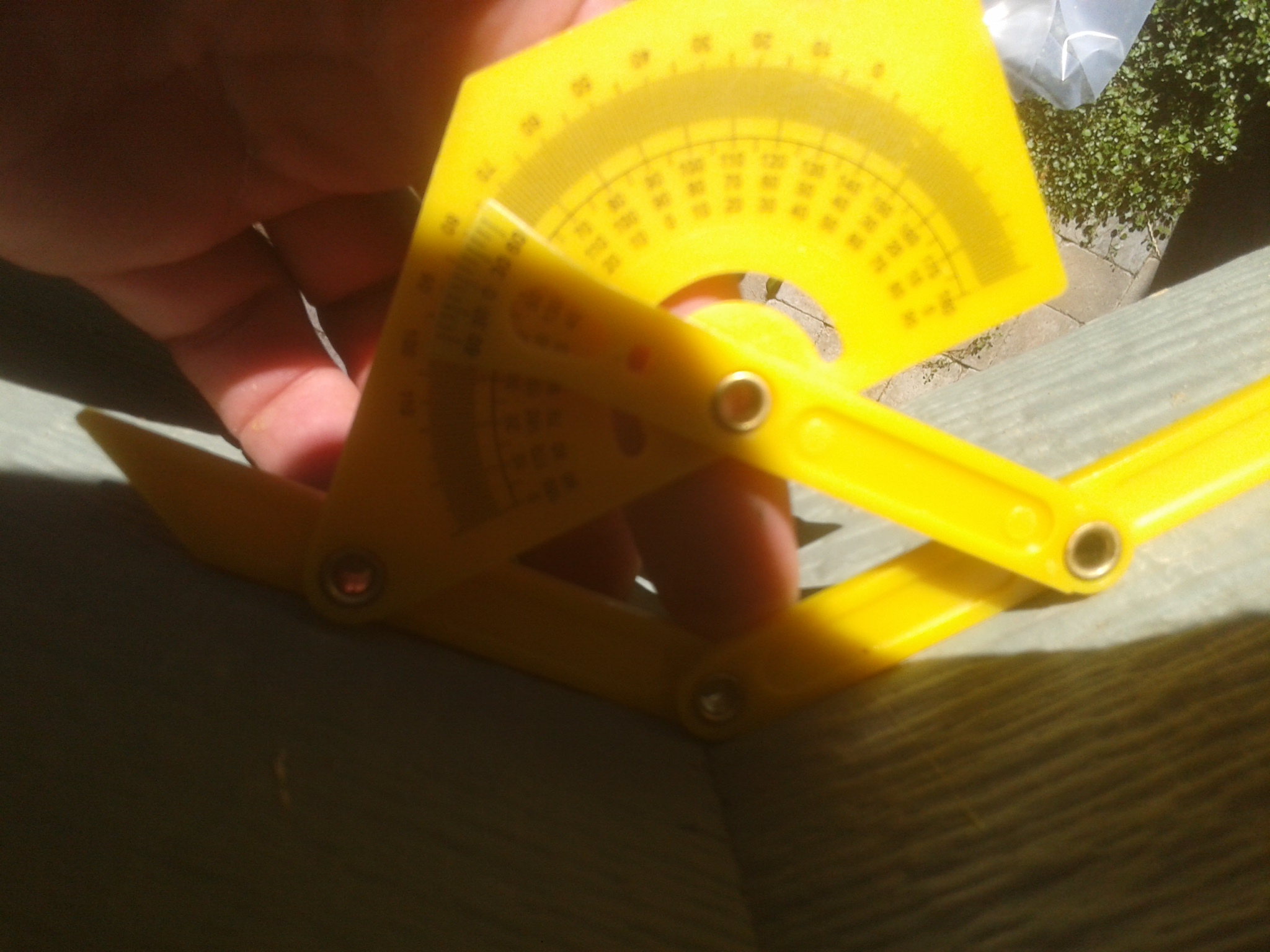

Angle 1 - 47 or 133 which way do you read it?

Angle 2 - 42 or 138 which way do you read it?

Angle 3 - 43 or 137 which way do you read it?

1

2

3

4

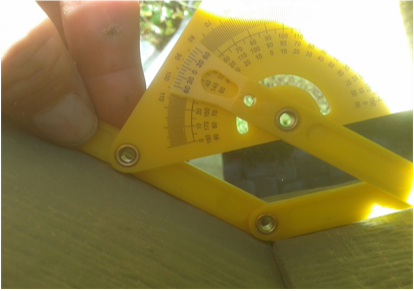

Angle 4 - 50 or 130, held angle finder same as in angle 3

48"

45 1/2"

Main deck stairs  B - 47" wide

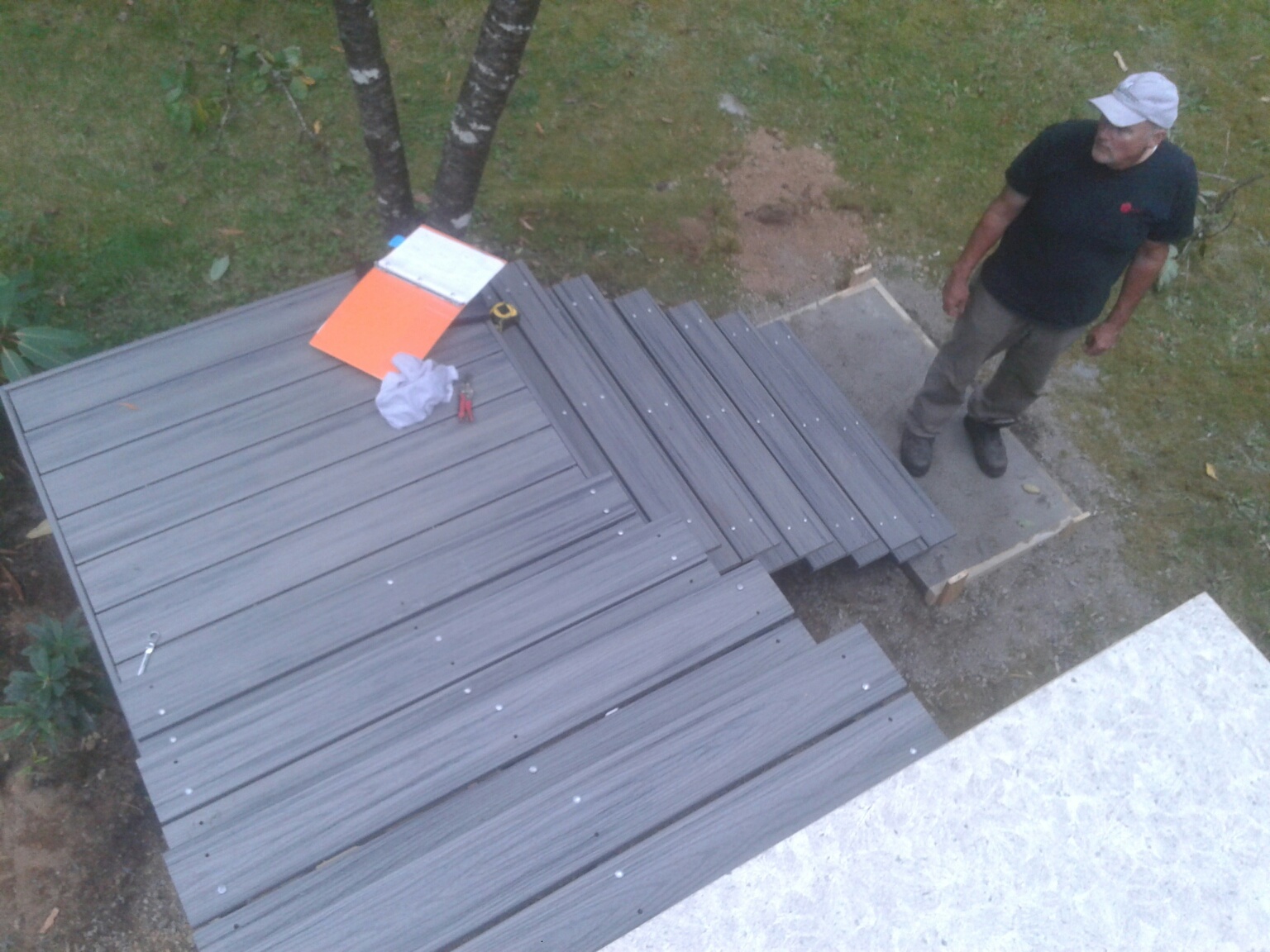

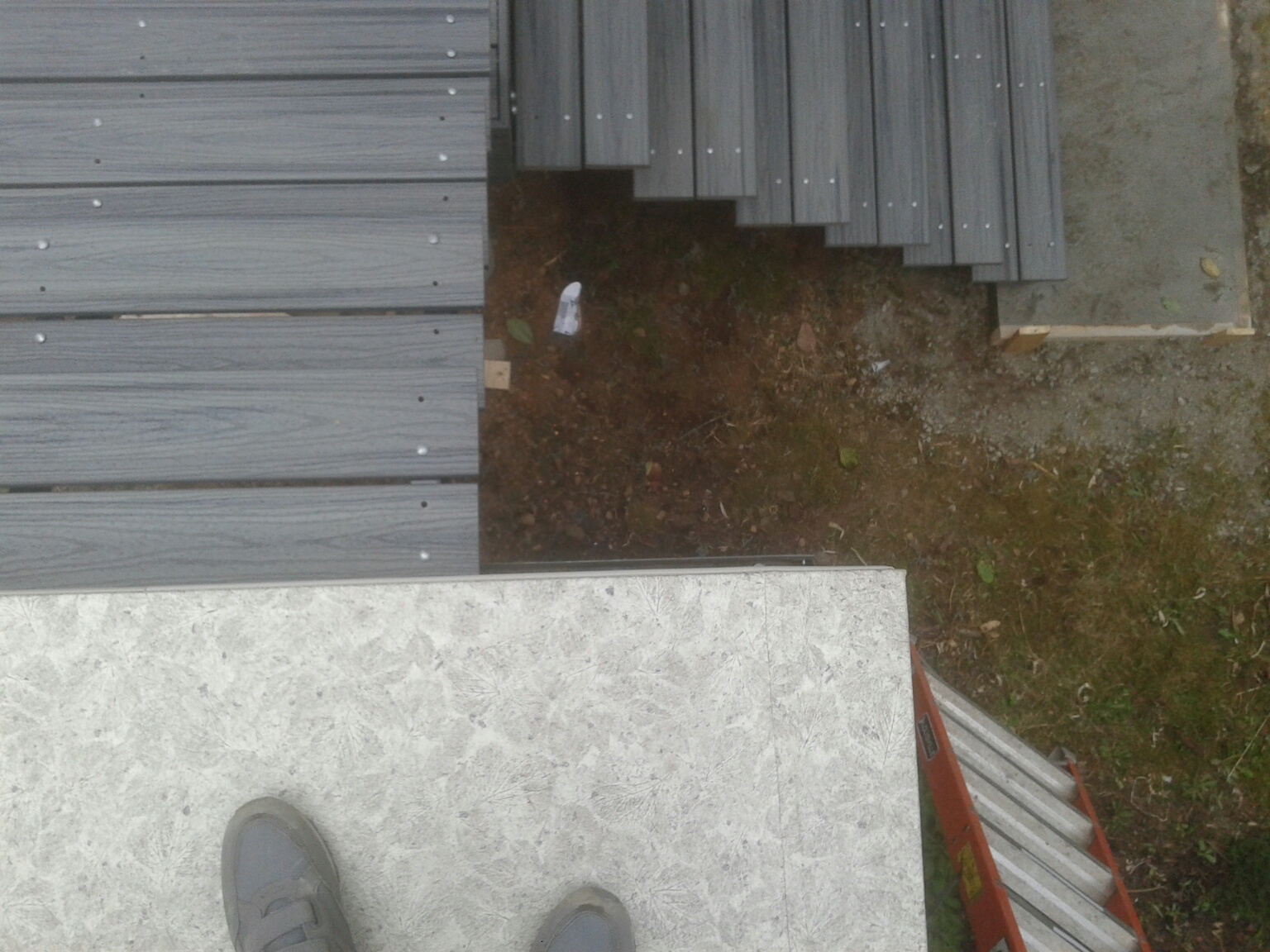

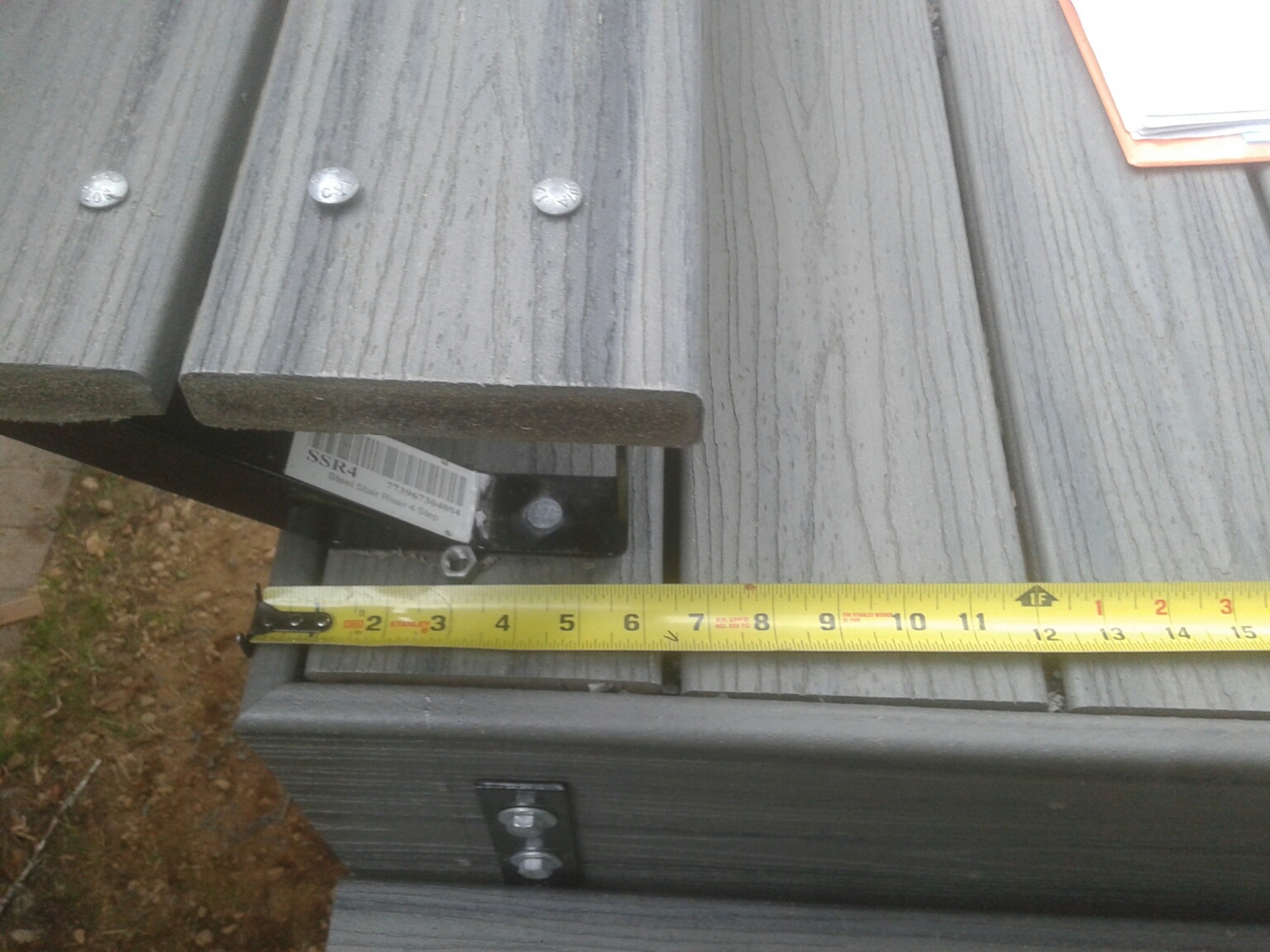

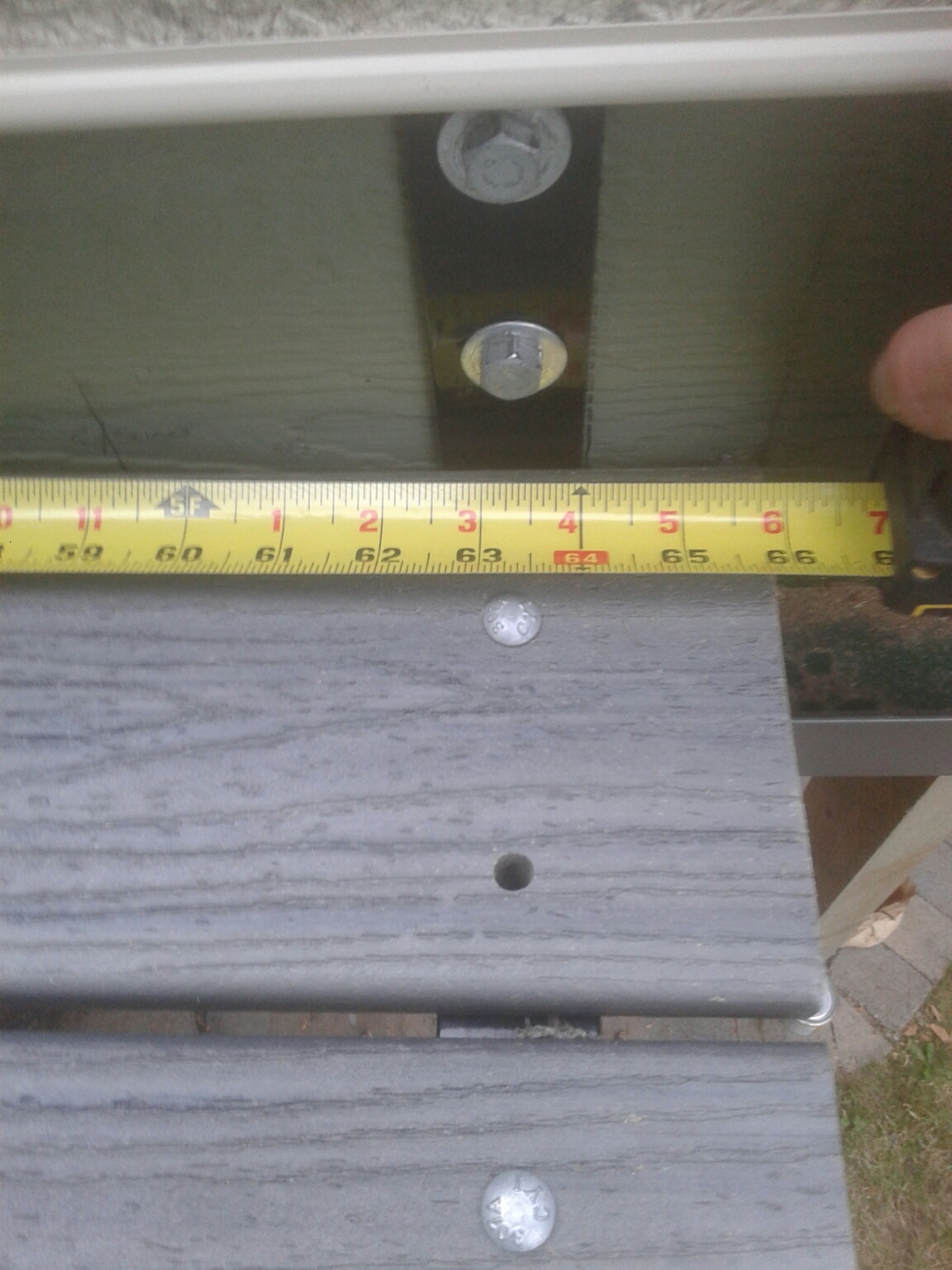

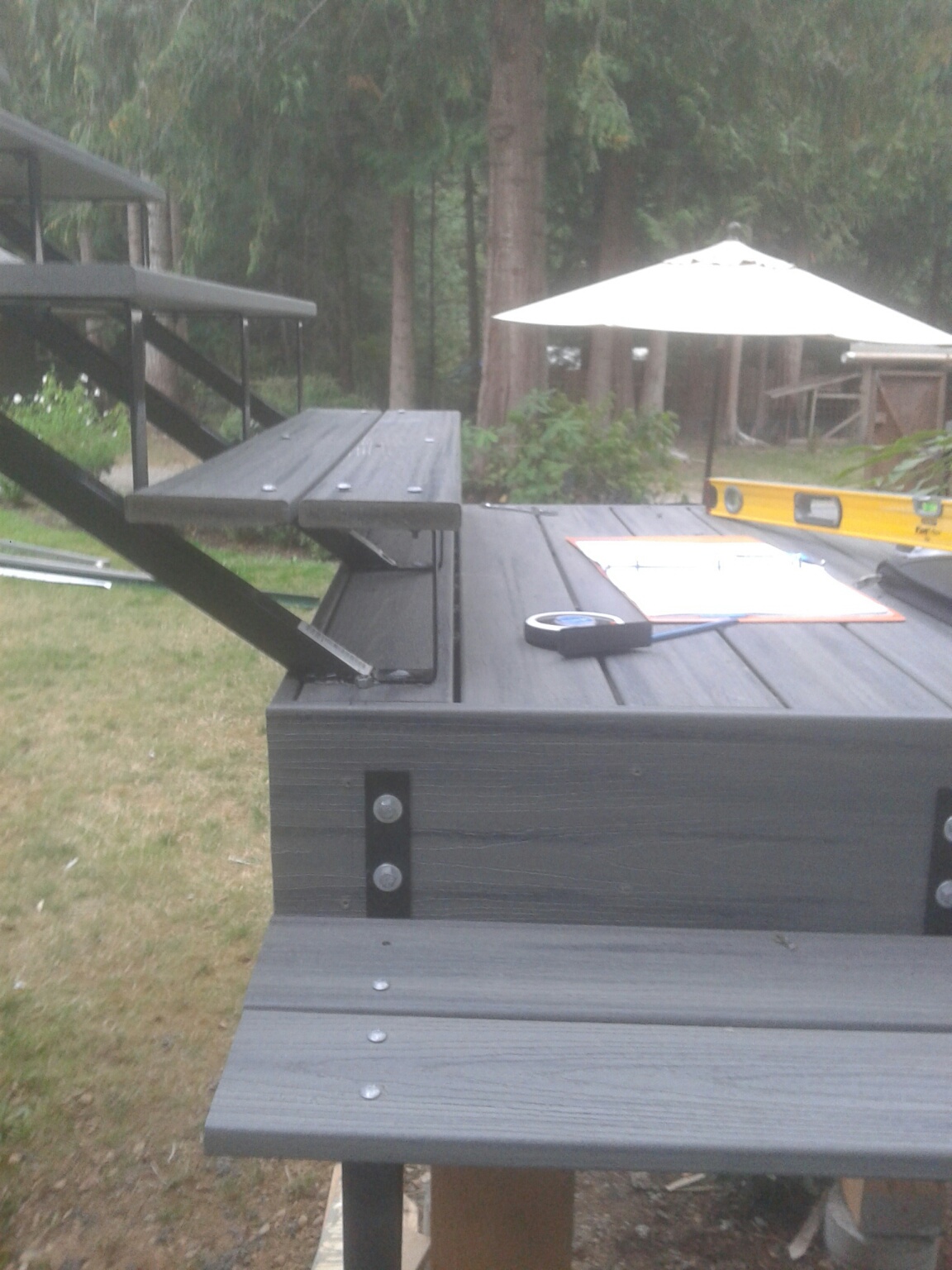

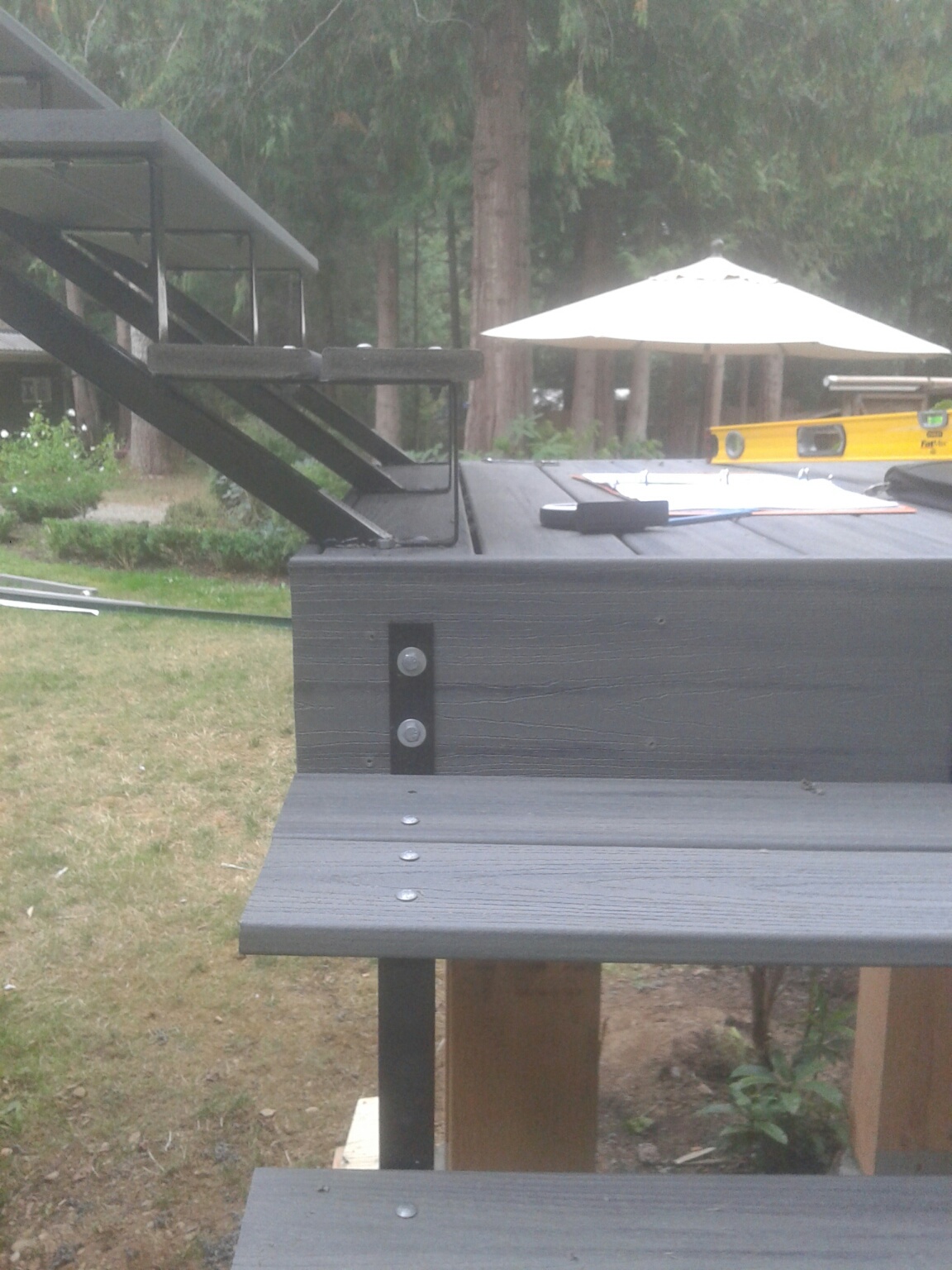

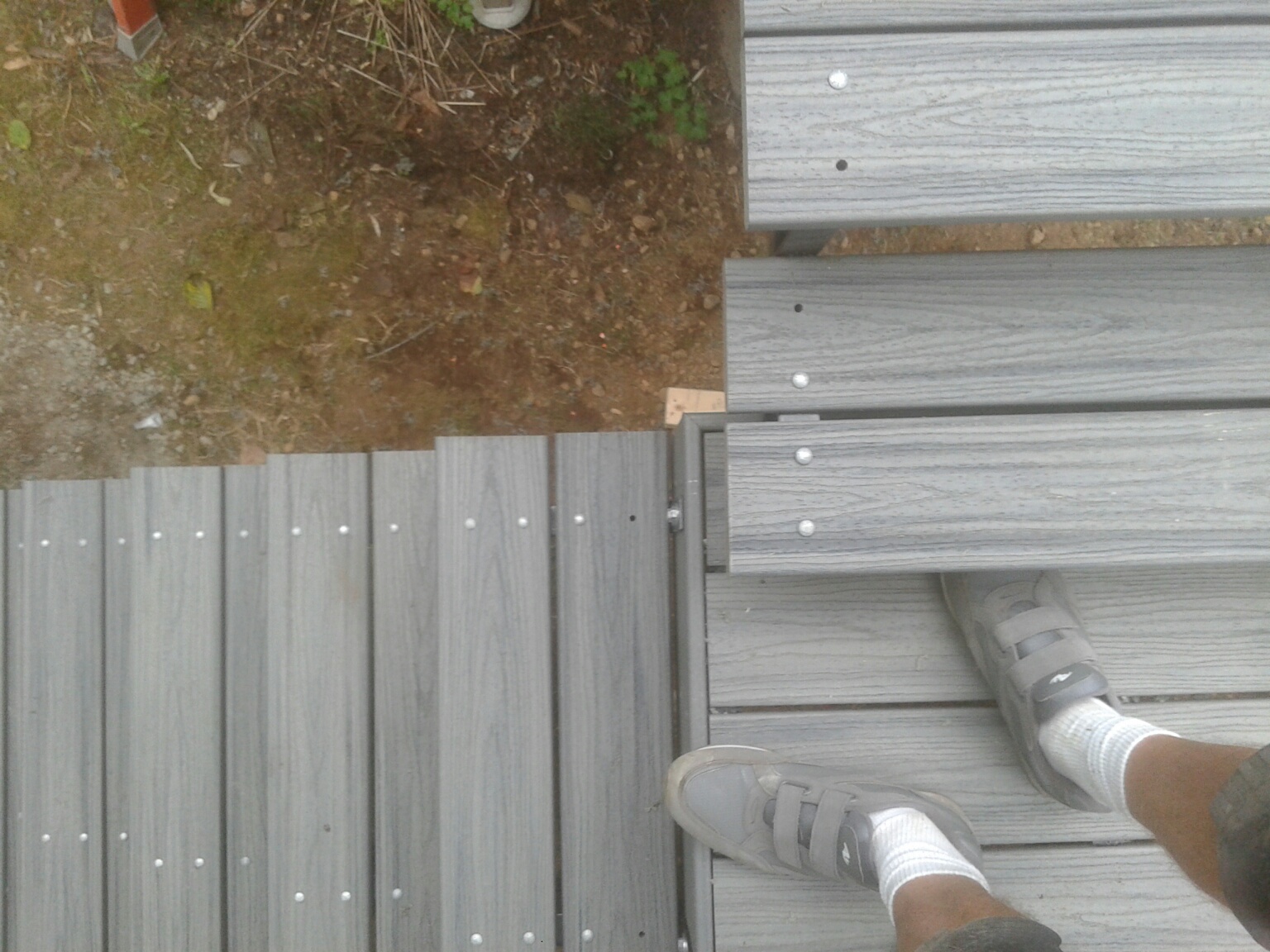

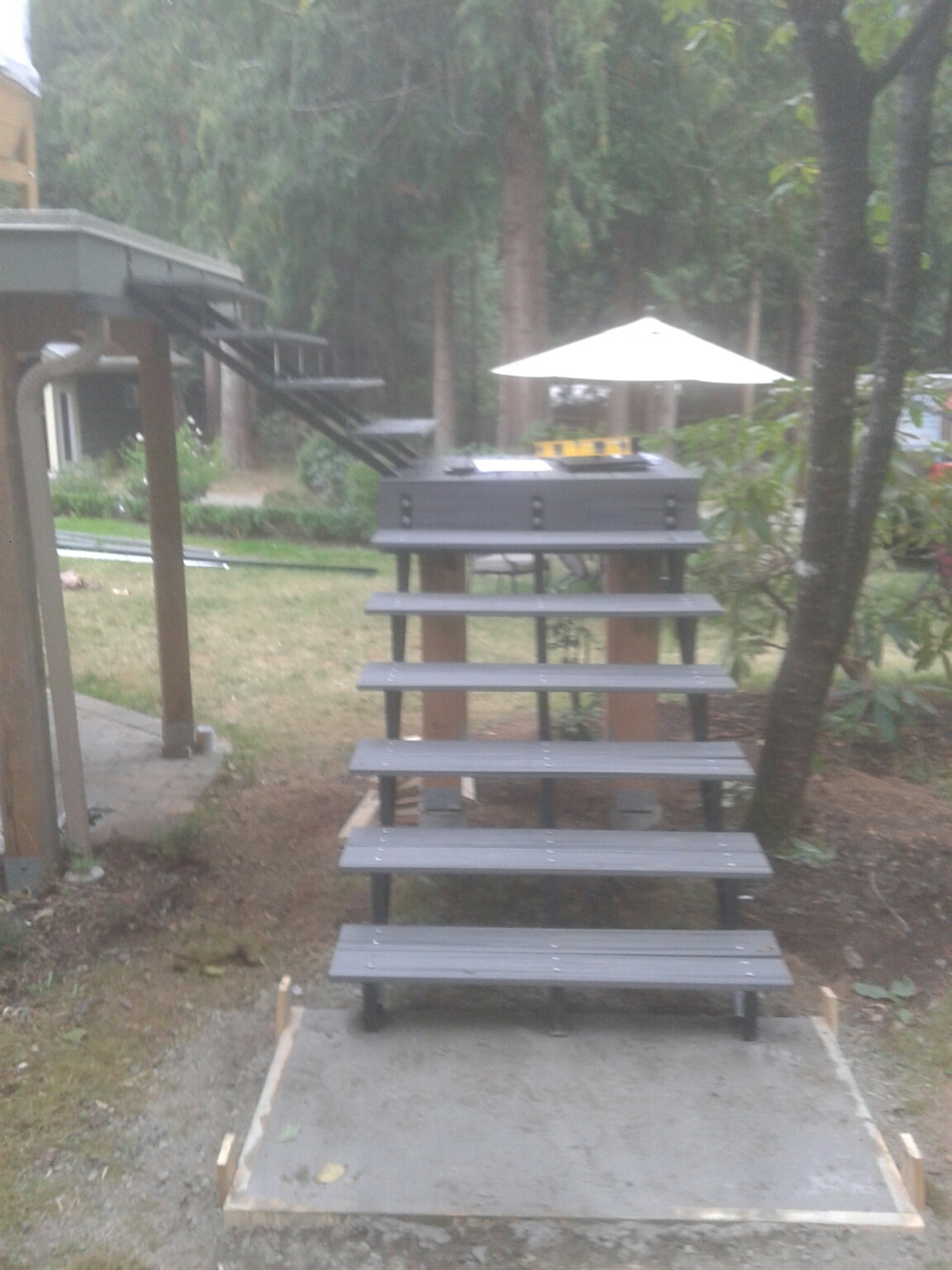

See many photos attached

EWB tab right

EWB tab left

See stair measure sheet - "Main deck stairs
A & B"

Treads 18" from fascia, Stringer starts at 20"

Last stinger at 64" from fascia edge

Stringers 1 1/2" wide

Tread ends at 65 3/4" from fascia edge

These stair treads project 6 1/2" past beginning of lower set.
