Mary and Bob Turner
Front porch - stairs 1
2"
2"
x
x
35 3/4"
10"
6 1/2"
11 3/4"
3
32 ish
46 1/4"
Post
Post
75 1/4"
Stair measure sheet for front porch stairs 1
Front porch stairs 1 - top mount accept at top landing to posts
ww
ww
S
S
44 1/2"
44 1/2"
x
x
x
x
Mary and Bob turner
S
S
S
S
S
S
2"
2"
70" straight down the stairs - 72 3/4" with angle
6
35
11 1/2" top step is 10 1/2"
6 1/2""
10"
72 3/4"
69 1/2"
Stair 1
Stair 2
The stair measure sheets are for each set of stairs, but notice, on this landing we have different distances to posts.

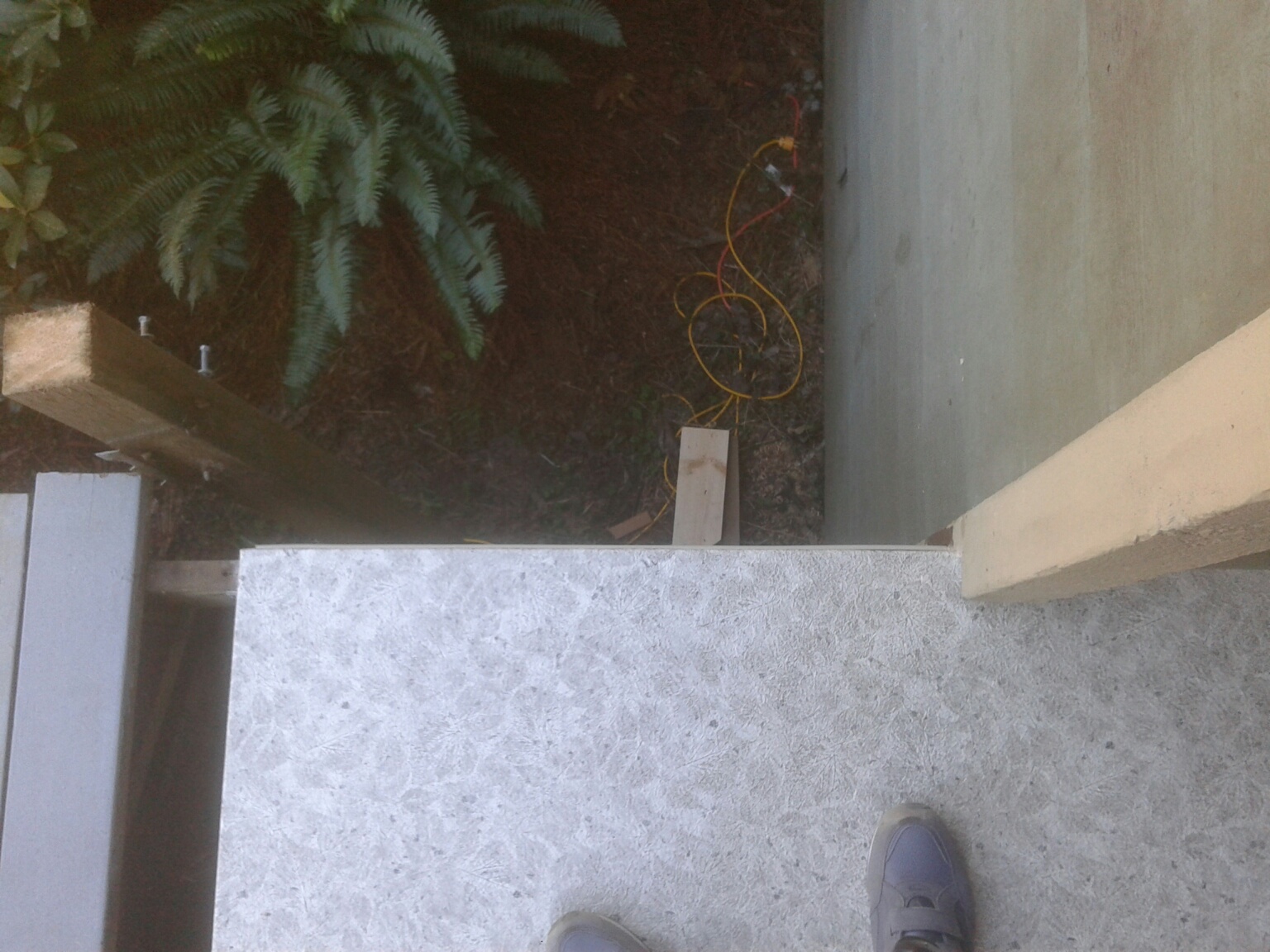

New Vinyl no top mount here
Need to run top of stair post out to edge of first tread to prevent top mount in vinyl
Level to edge of first treads
8" rise on first riser
Stair measure sheet for front porch stairs 2
Stair measure sheet for front porch stairs 2

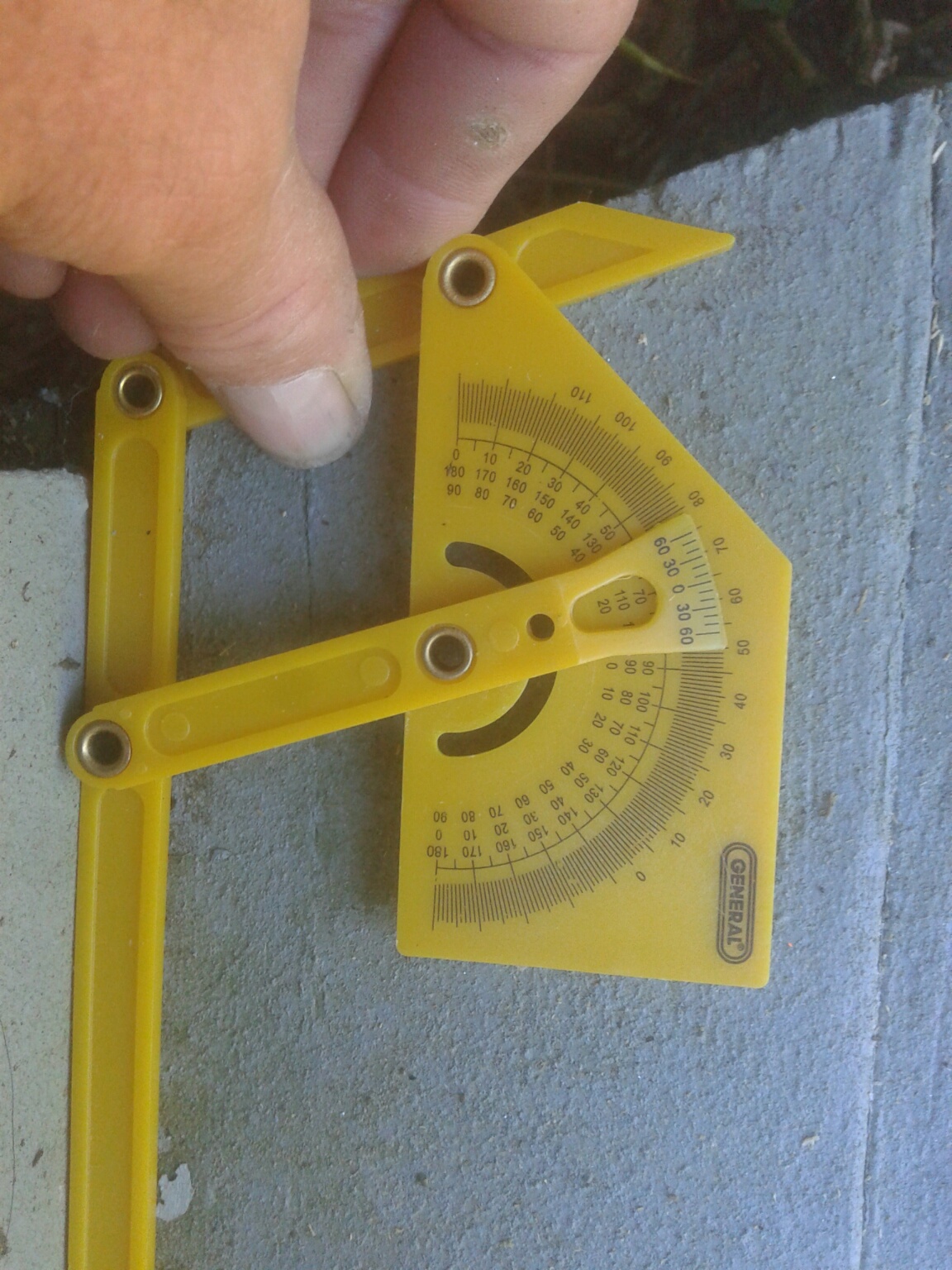

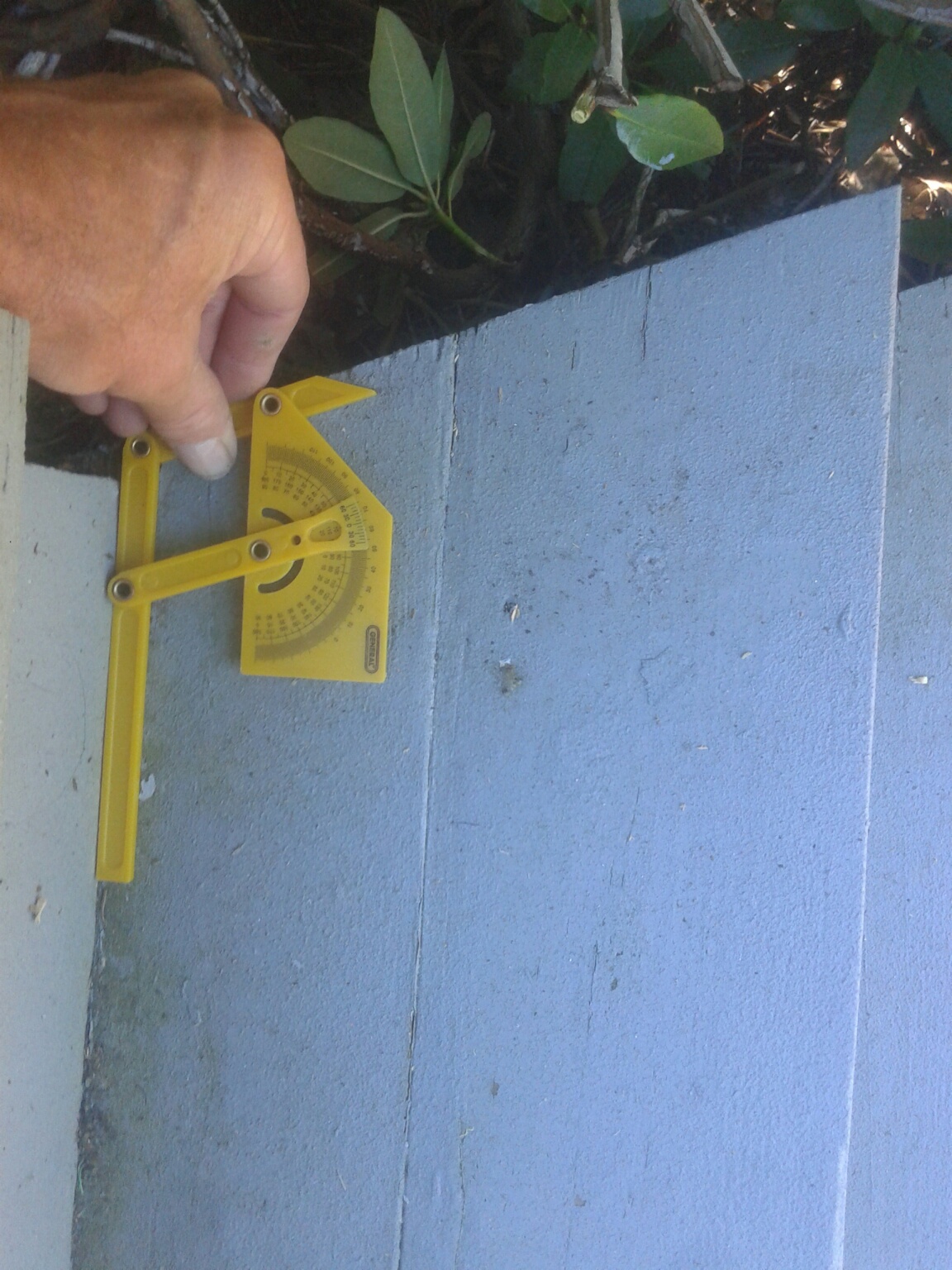

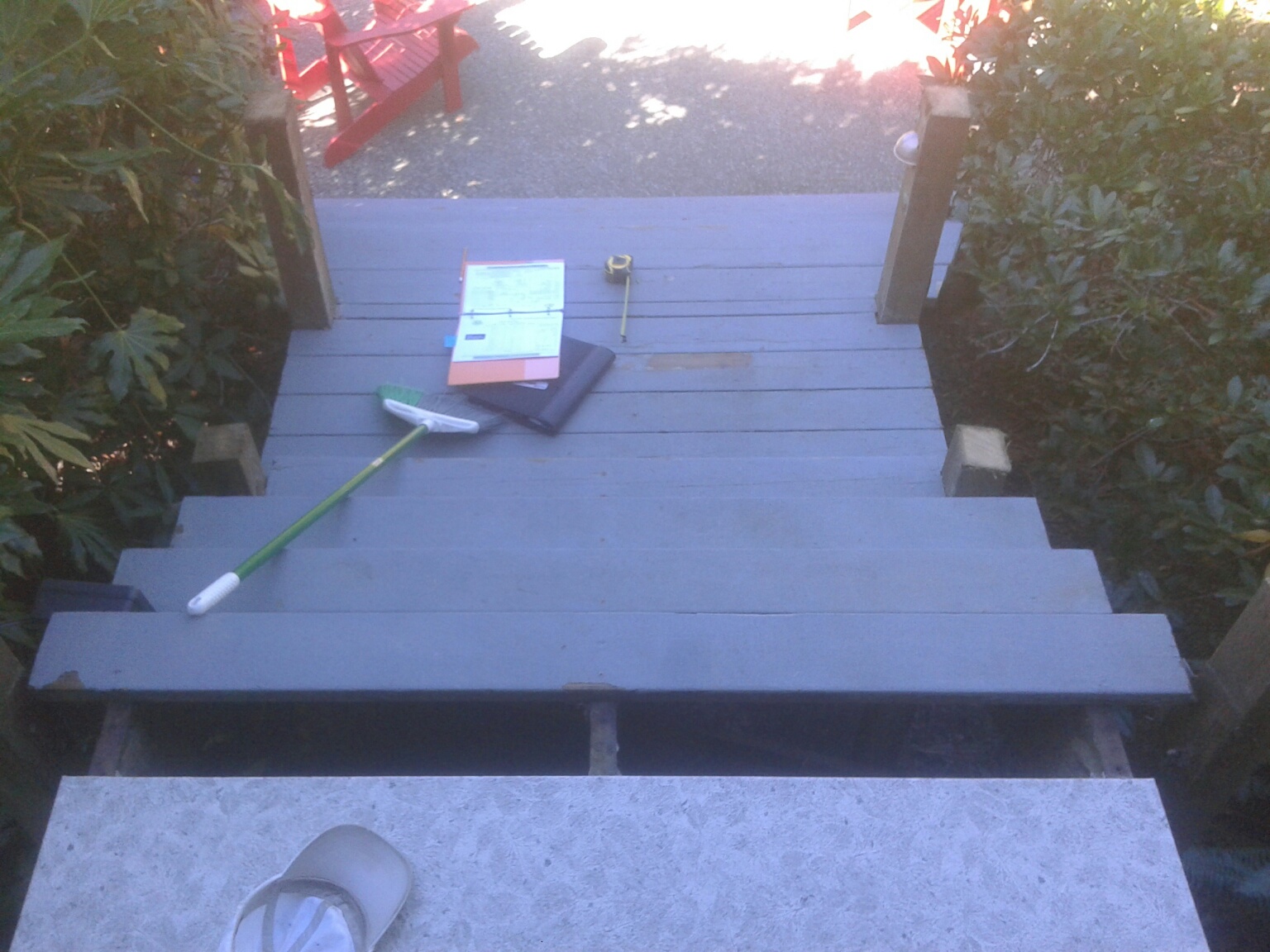

See photos below for angle
See photos below for angle

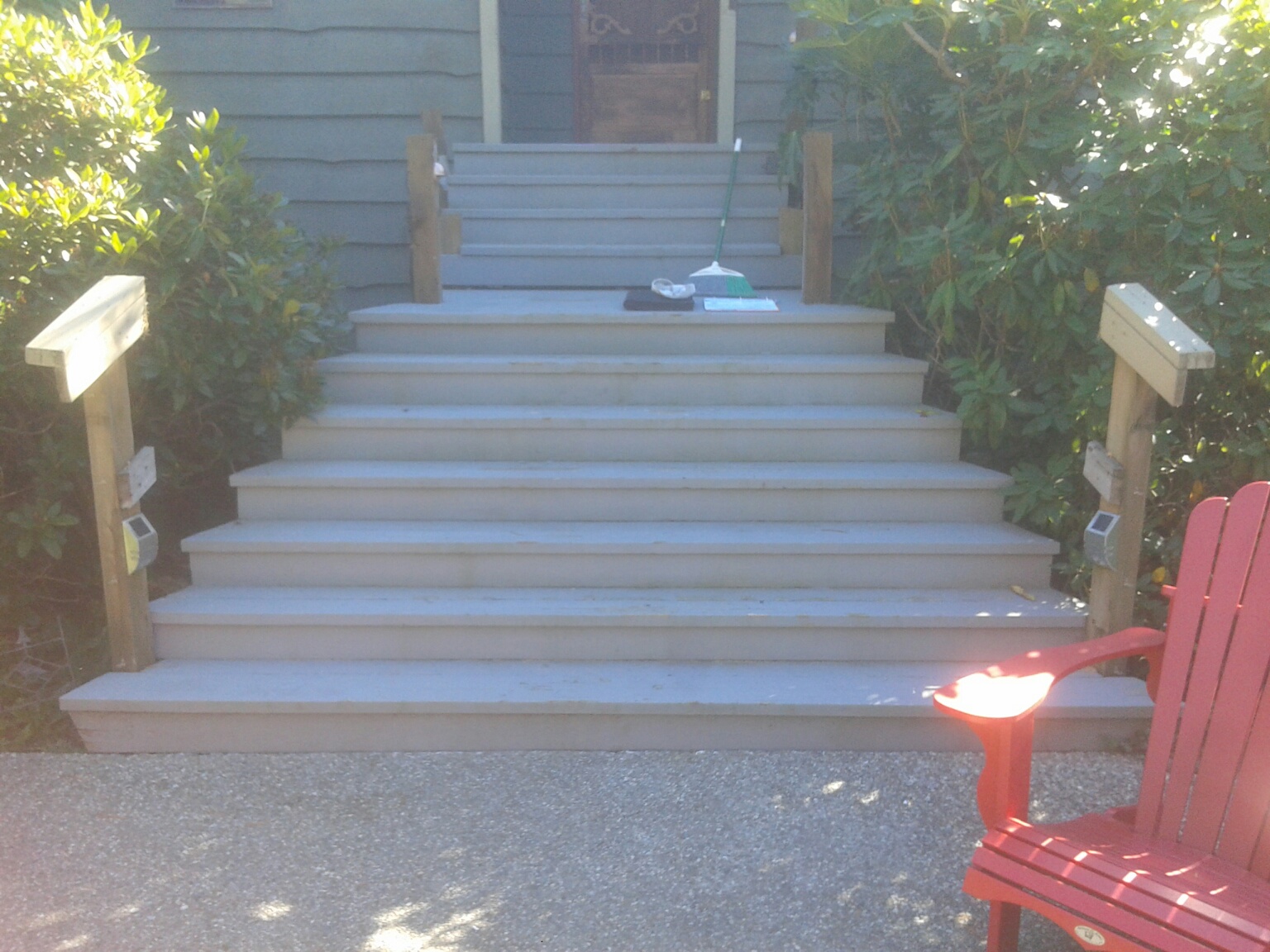

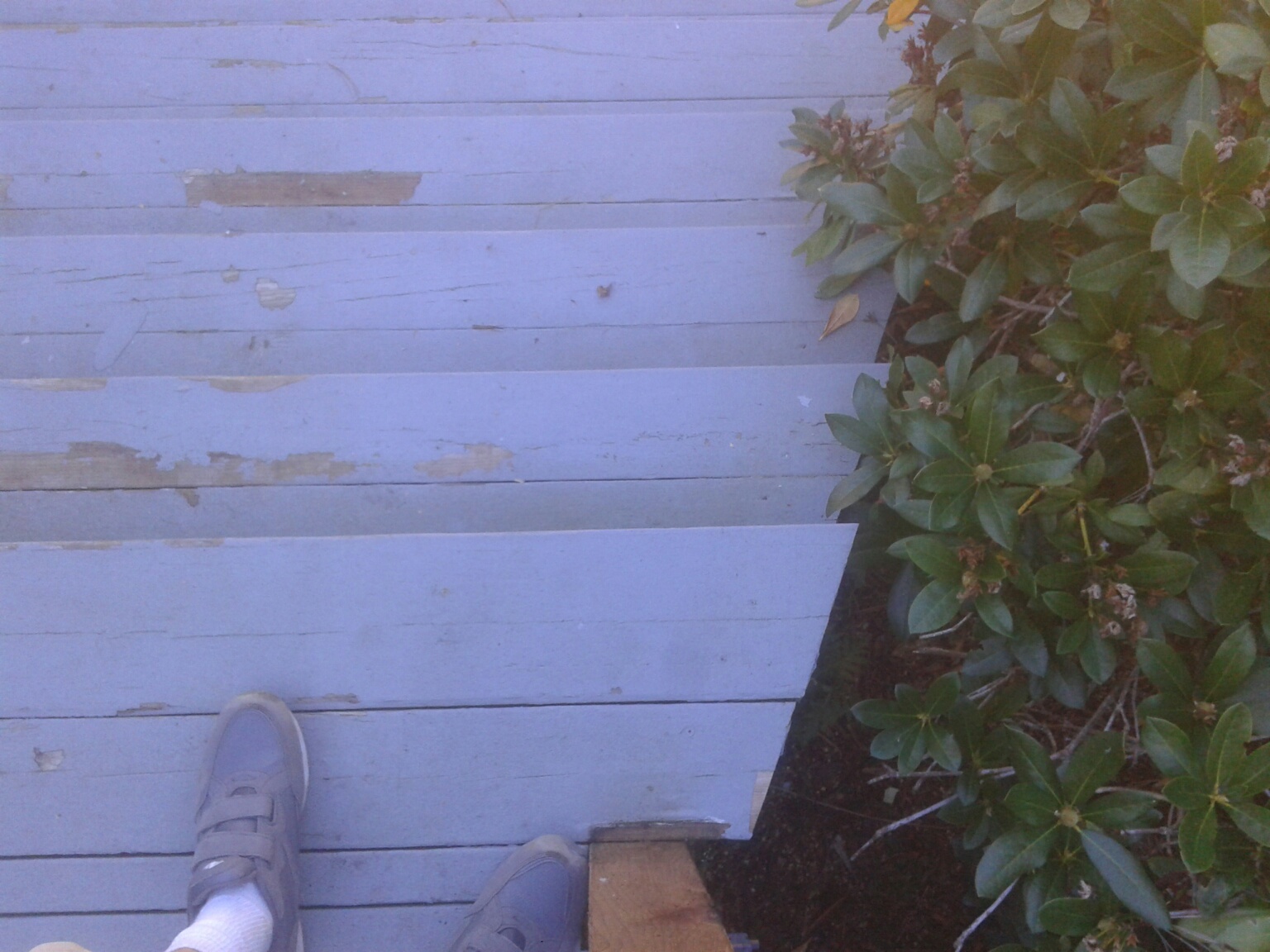

Stair tread on second landing, then the stairs angle outward.
Railings color - Black
Jeff I don't know this measurement, don't see how it plays into this. The house is over on Quadra island and a long way to get to.
The way these stairs are built I know we will have some lost tread room on the outside of the lower stair railings but they are large and the client undrstands this.

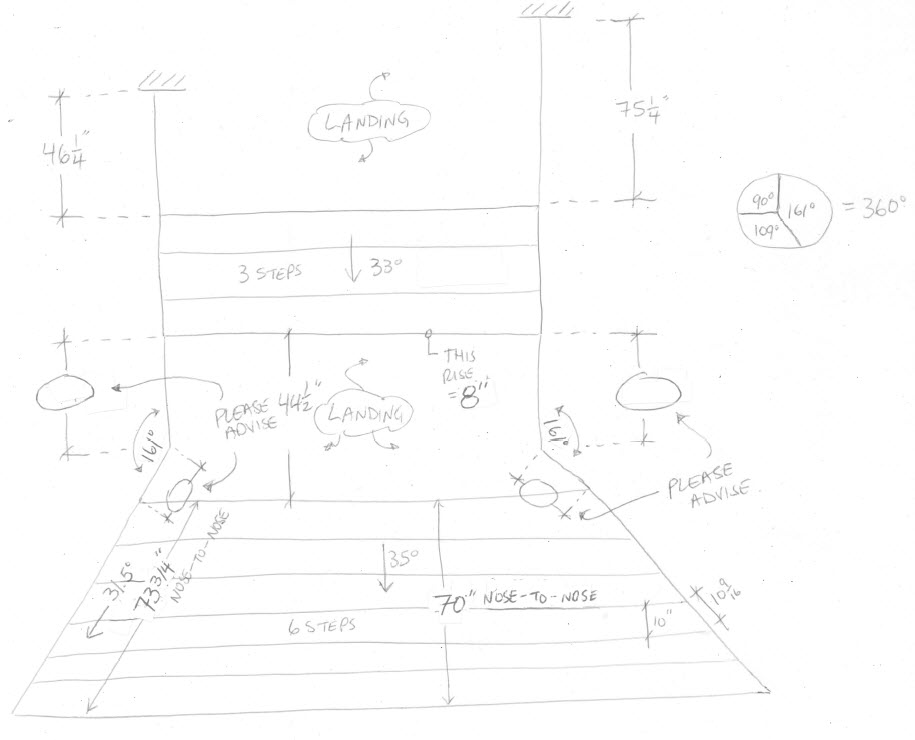

The 46 1/4" and the 75 1/4" are measurements to the edge of the first tread which is level with the landing, this way it is mounted to the posts at the house with WW and bottom rail brackets. So no holes in vinyl.
Horizontal rail
Stair railing
Horizontal rail
Stair railing
44 1/2"
Will loose some tread area outside of railing, this is ok.
Same on other side
Yes on the 161
mount post here with WW and bottom rail bracket
top mount post here
Top of stair post on second landing
WW
WW
