27'
16'
2' x 4' wide indent @ tree
Posts 8' C-C
Over Hang = 18"
stairs 3' wide
stairs 4' wide 6 or 7 steps
2x10" PT joists
triple PT 2x10 beam
Octagon hot tub deck all sides @ 5'7"
13' 53/4"
13' 53/4"
Hot tub 6x6 approx
Hot tub decking, 5/4 sienna set diagonally
Posts 6x6 PT
Footings = 24" bigfoots with 10" sono tube
Notes:

- Stair stringers 2x12 PT with Sienna facing
- 2 inset stair lights per step
follow link to view lights

- Railing system, 42" tall aluminum 5/8" picket,
side mount system

- Stairs 36" stair railings 5/8" picket sidemount

Hot tub deck railings, 36" side mount.
Hot tub deck supported by
15 - 12x12 post blocks -
4x4 posts, dbl 2x6 beams and 2x6 dbl joists
Flared stairs to ground
5'7" wide, then wrap 12" on first step and 24" on second step.
Deck - Carly Ruiz
1913 Miracle Beach drive
Hot tub deck approx 16" off ground
-----------------------
Decking, 5/4 sienna set perpendicular to beams
All PT ( pressure treated)
Based on 2x8 beams
2x8 cross members
6x6 posts
2x4 top strapping
6x6 base plates

$1450.00

It will not be mounted into the railing system, it will be positioned on deck free standing, see image above.

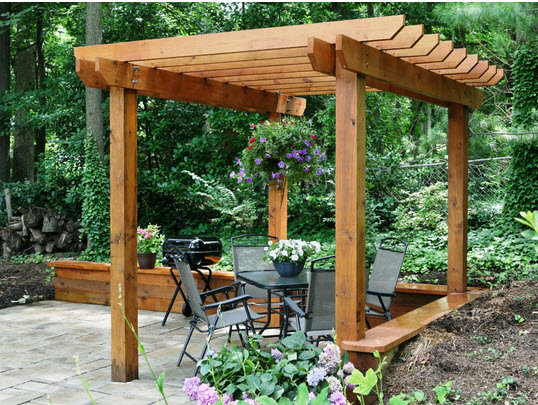

Pergola as in image below
12' wide x 12' projection.
Door to house
